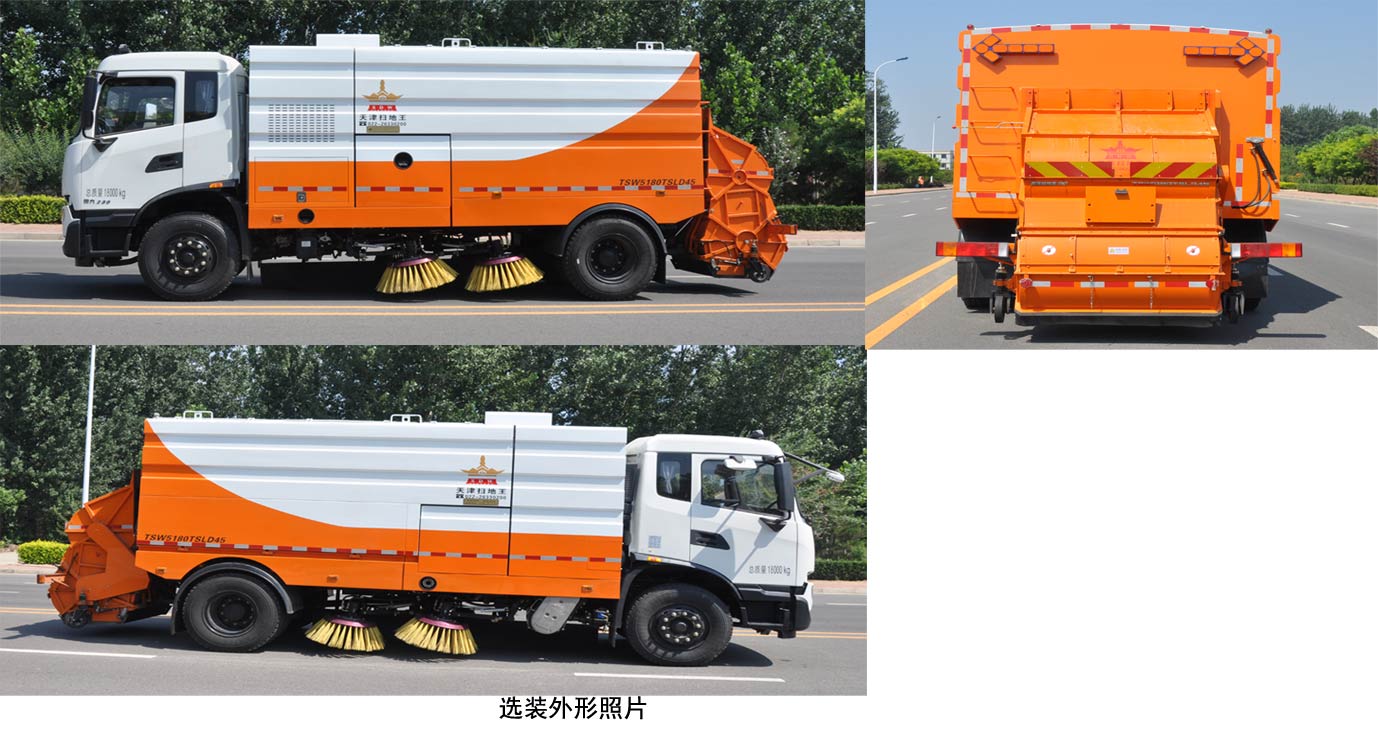

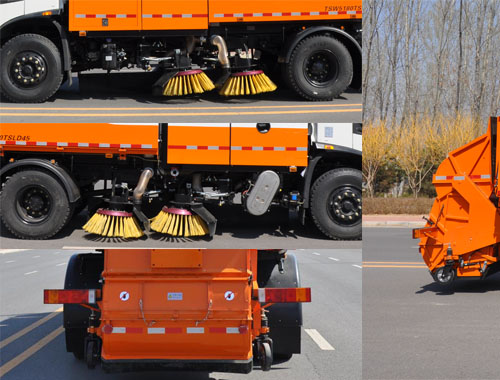

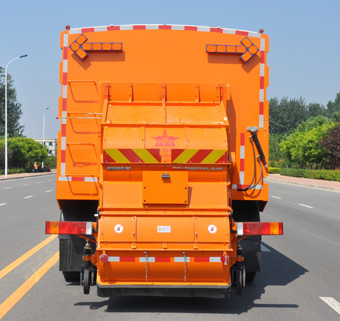

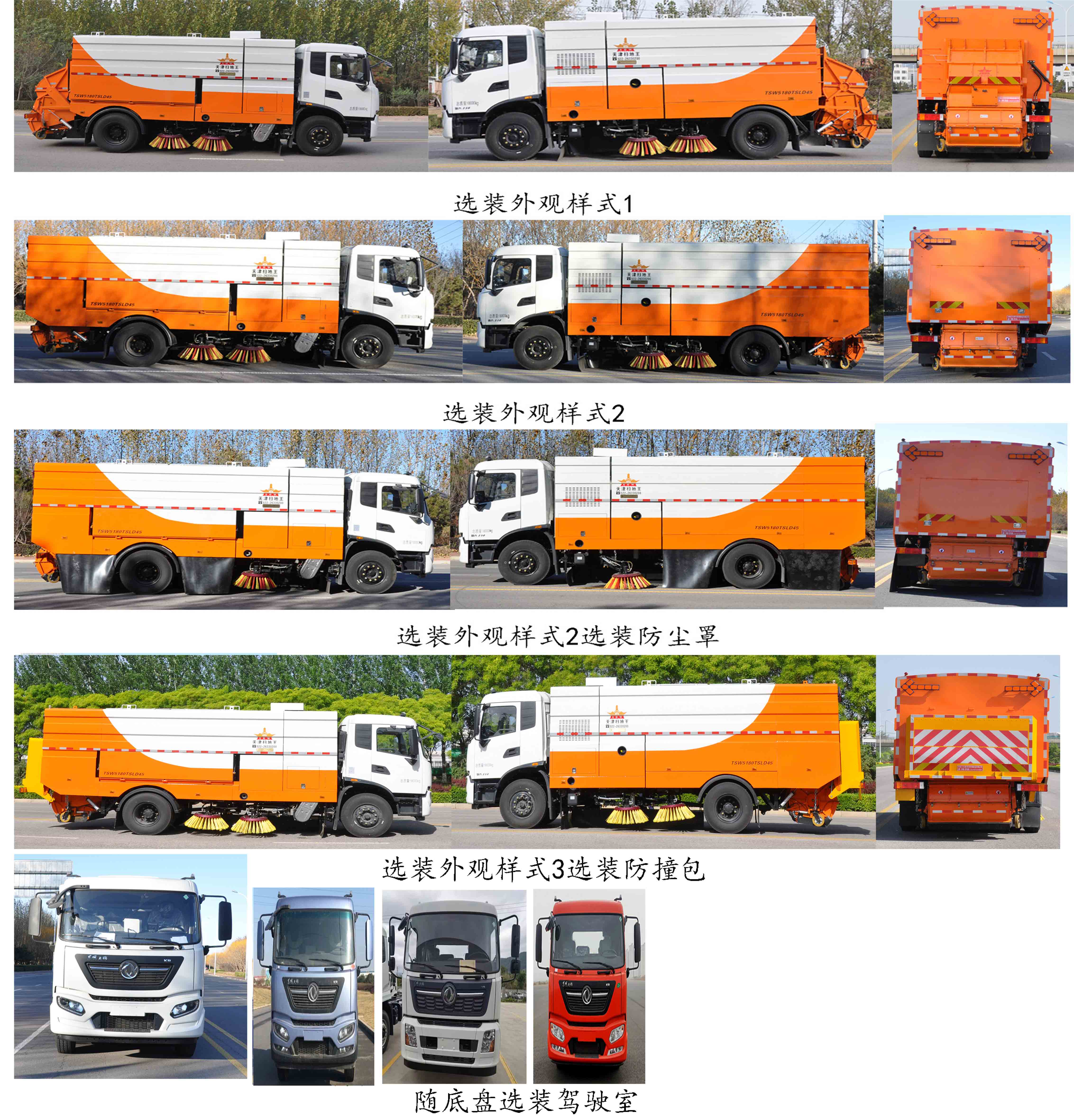

Street sweeper truck HuaHuan TSW5180TSLD45
CN￥ Price subject to requirements.
Contact Info
Tel: +86 188-7298-8678 (WeChat)
Email: lucia@truckclw.com
Basic Information
Announcement Model
TSW5180TSLD45
Vehicle Type
Street sweeper truck
Vehicle Brand
HuaHuan
Model Series
-

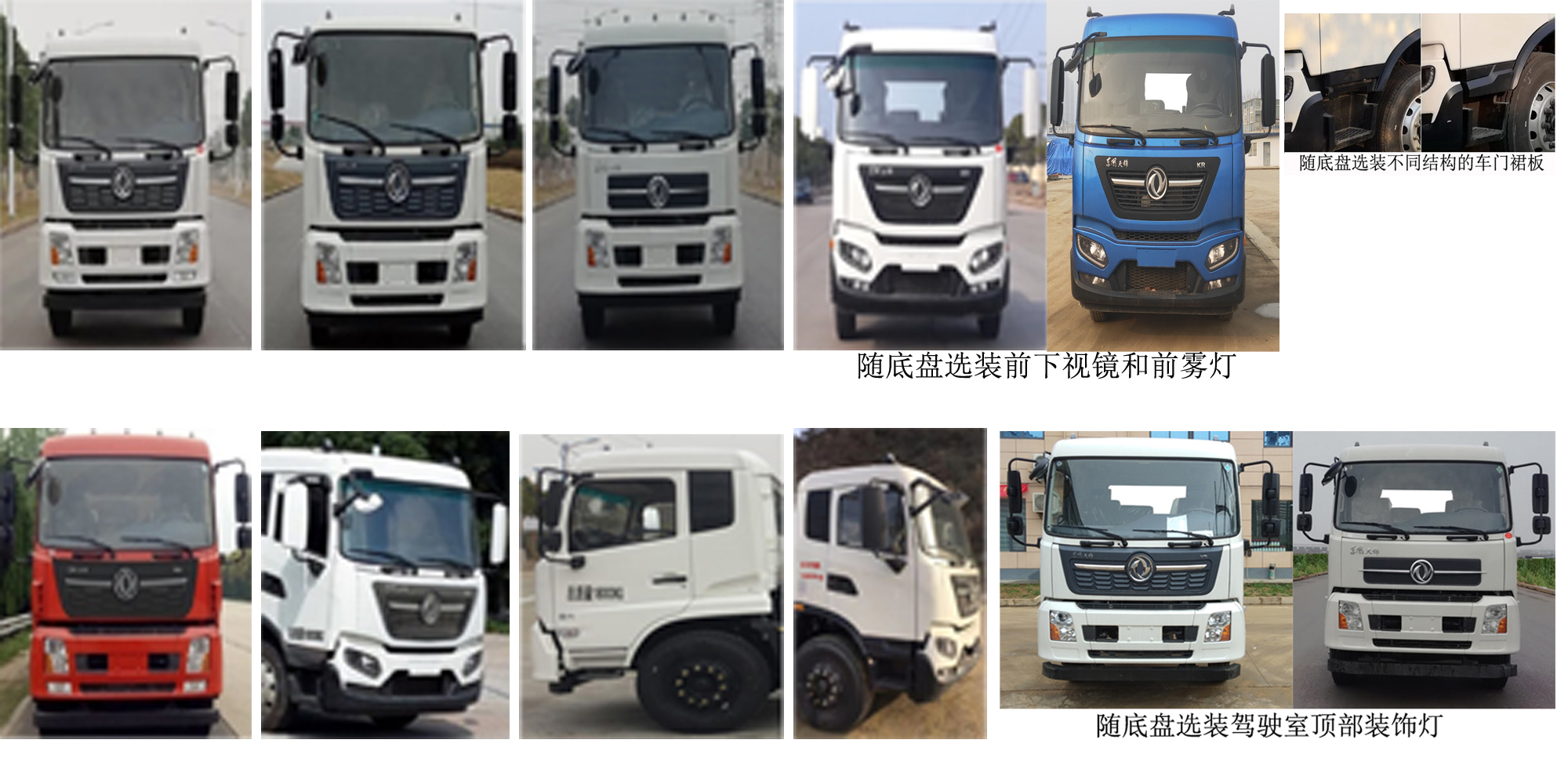

Chassis Model
DFH1180EX8
Fuel Type
Diesel
Emission standards
China Ⅵ
Release Date
20241230
Engine parameters (engine optional upon request.)
| Engine Model | Manufacturer | Displacement (ml) | Power (kw) |
|---|---|---|---|
| D4.5NS6B190 | DONGFENG CUMMINS ENGINE CO., LTD. | 4500 | 140 |
| D6.7NS6B230 | DONGFENG CUMMINS ENGINE CO., LTD. | 6700 | 169 |
| B6.2NS6B210 | DONGFENG CUMMINS ENGINE CO., LTD. | 6200 | 154 |
| D4.0NS6B185 | DONGFENG CUMMINS ENGINE CO., LTD. | 4000 | 136 |
| DDi50E220-60 | DONGFENG COMMERCIAL VEHICLE CO., LTD.(DFCV) | 5000 | 162 |
| B6.2NS6B230 | DONGFENG CUMMINS ENGINE CO., LTD. | 6200 | 169 |
| DDi50E190-60 | DONGFENG COMMERCIAL VEHICLE CO., LTD.(DFCV) | 5000 | 147 |
| D4.0NS6B195 | DONGFENG CUMMINS ENGINE CO., LTD. | 4000 | 143 |
| D6.7NS6B260 | DONGFENG CUMMINS ENGINE CO., LTD. | 6700 | 191 |
| D4.5NS6B220 | DONGFENG CUMMINS ENGINE CO., LTD. | 4500 | 162 |
| DDi47E210-60 | DONGFENG COMMERCIAL VEHICLE CO., LTD.(DFCV) | 4750 | 154 |
| B6.2NS6B260 | DONGFENG CUMMINS ENGINE CO., LTD. | 6200 | 191 |
| B6.2NS6B245 | DONGFENG CUMMINS ENGINE CO., LTD. | 6200 | 180 |
| DDi47E240-60 | DONGFENG COMMERCIAL VEHICLE CO., LTD.(DFCV) | 4750 | 177 |
| DDi47E260-60 | DONGFENG COMMERCIAL VEHICLE CO., LTD.(DFCV) | 4750 | 191 |
| D4.5NS6B240 | DONGFENG CUMMINS ENGINE CO., LTD. | 4500 | 176 |
Main Technical Parameters
Dimensions
Overall Length (mm):
8240,8260,8740
Overall Width (mm):
2550
Overall Height (mm):
3260,3160
Cargo Box Length (mm):
Cargo Box Width (mm):
Cargo Box Height (mm):
Chassis Parameters
Gross Vehicle Weight (kg):
18000
Curb Weight (kg):
10440,11050,11160
Rated Payload (kg):
7365,7430,6755,6645
Wheelbase (mm):
3800,3950,4200,4500,4700,5000,5300,5800,5600,5100
Number of Axles:
2
Number of Tires:
6
Tire Size:
10.00R20 18PR,275/80R22.5 18PR
Maximum Speed (km/h):
89
