Kitchen Garbage Truck SenYuan SMQ5070TCAEQE6
CN￥ Price subject to requirements.
Contact Info
Tel: +86 188-7298-8678 (WeChat)
Email: lucia@truckclw.com
Basic Information
Announcement Model
SMQ5070TCAEQE6
Vehicle Type
Kitchen Garbage Truck
Vehicle Brand
SenYuan
Model Series
-

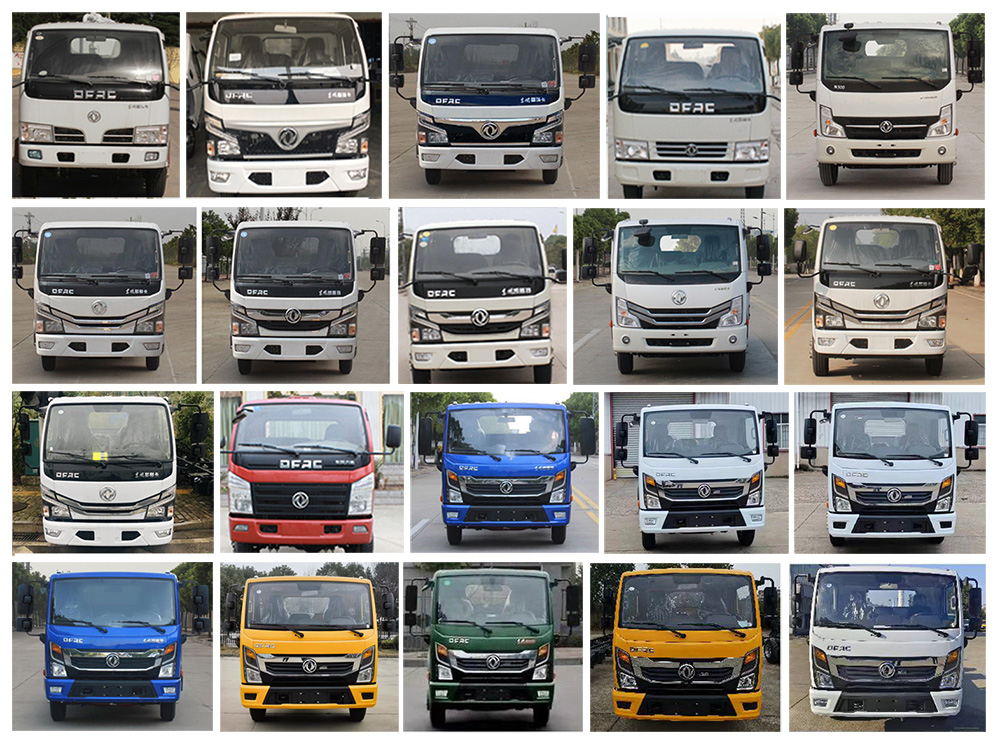

Chassis Model
EQ1075SJ3CDF
Fuel Type
Diesel
Emission standards
China Ⅵ
Release Date
20241204
Engine parameters (engine optional upon request.)
| Engine Model | Manufacturer | Displacement (ml) | Power (kw) |
|---|---|---|---|
| CY4BK461 | DONGFENG CHAOYANG DIESEL CO.,LTD.(DCD) | 3707 | 95 |
| CA4DB1-11E6 | CHINA FAW GROUP CO., LTD. | 2207 | 81 |
| CY4BK161 | DONGFENG CHAOYANG DIESEL CO.,LTD.(DCD) | 3856 | 105 |
| D20TCIF1 | KUNMING YUNNEI POWER CO., LTD. | 1999 | 93 |
| Q28-130E60 | ANHUI QUANCHAI ENGINE CO.,LTD. | 2800 | 96 |
| H20-120E60 | ANHUI QUANCHAI ENGINE CO.,LTD. | 2000 | 90 |
| CA4DB1-13E6 | CHINA FAW GROUP CO., LTD. | 2207 | 95 |
| YCY24140-60 | GUANGXI YUCHAI MACHINERY GROUP CO., LTD. | 2360 | 103 |
| D20TCIF11 | KUNMING YUNNEI POWER CO., LTD. | 1999 | 93 |
| Q23-115E60 | ANHUI QUANCHAI ENGINE CO.,LTD. | 2300 | 85 |
| ZD30D16-6N | DONGFENG LIGHT ENGINE CO., LTD.(DFLE) | 2953 | 120 |
| M9T-600 | DONGFENG LIGHT ENGINE CO., LTD.(DFLE) | 2298 | 105 |
| Q23-136E60 | ANHUI QUANCHAI ENGINE CO.,LTD. | 2300 | 100 |
| Q23-132E60 | ANHUI QUANCHAI ENGINE CO.,LTD. | 2300 | 97 |
| YCY24120-60 | GUANGXI YUCHAI MACHINERY GROUP CO., LTD. | 2360 | 88 |
| Q25-152E60 | ANHUI QUANCHAI ENGINE CO.,LTD. | 2493 | 112 |
| YN25PLUS160B | KUNMING YUNNEI POWER CO., LTD. | 2499 | 114 |
| D20TCIF61 | KUNMING YUNNEI POWER CO., LTD. | 1999 | 103 |
| YCY24155-61A | GUANGXI YUCHAI MACHINERY GROUP CO., LTD. | 2360 | 113 |
| Q25N-152E60 | ANHUI QUANCHAI ENGINE CO.,LTD. | 2496 | 112 |
| ZD25D16-6D | DONGFENG LIGHT ENGINE CO., LTD.(DFLE) | 2499 | 120 |
| Q25D-162E60 | ANHUI QUANCHAI ENGINE CO.,LTD. | 2496 | 116 |
| Q25A-150E60 | ANHUI QUANCHAI ENGINE CO.,LTD. | 2496 | 110 |
| Q | ANHUI QUANCHAI ENGINE CO.,LTD. | 2300 | 103 |
Main Technical Parameters
Dimensions
Overall Length (mm):
5995
Overall Width (mm):
2075
Overall Height (mm):
2610
Cargo Box Length (mm):
Cargo Box Width (mm):
Cargo Box Height (mm):
Chassis Parameters
Gross Vehicle Weight (kg):
7360
Curb Weight (kg):
4750,4525
Rated Payload (kg):
2480,2705
Wheelbase (mm):
2700,2950,3308,3600,3800,2800
Number of Axles:
2
Number of Tires:
6
Tire Size:
7.00R16,7.00R16LT,7.00R16LT 14PR,7.50R16LT 16PR
Maximum Speed (km/h):
110
